The page header includes timestamp, duration, IEEE classification and monitor
details. You can also export the single event to Excel, XML or PQDIF for further
analysis.

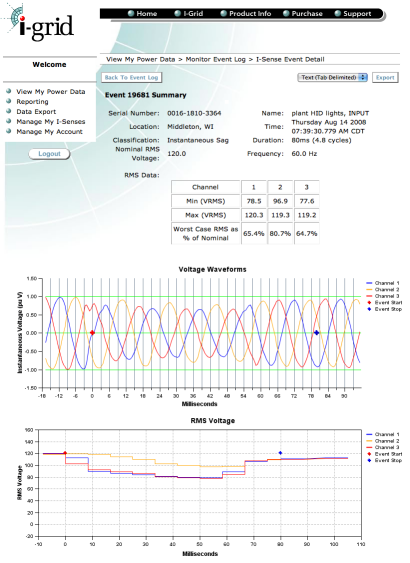

The minimum/maximum RMS and the worst-case RMS
as a % of nominal is displayed for each channel.
The first and last 4 cycles of the voltage waveform is recorded.
The red cross (+) denotes when the
event was detected.
The blue cross (+) denotes when the
event is declared over and conditions has returned to normal. Longer duration
events will be split into separate start and end charts.
The RMS voltage is recorded throughout the event. The red cross (+) denotes when the event was detected.
The blue cross (+) denotes when the
event is declared over and conditions has returned to normal.
The maximum resolution is half-cycle. The resolution will decrease for longer duration
events.
