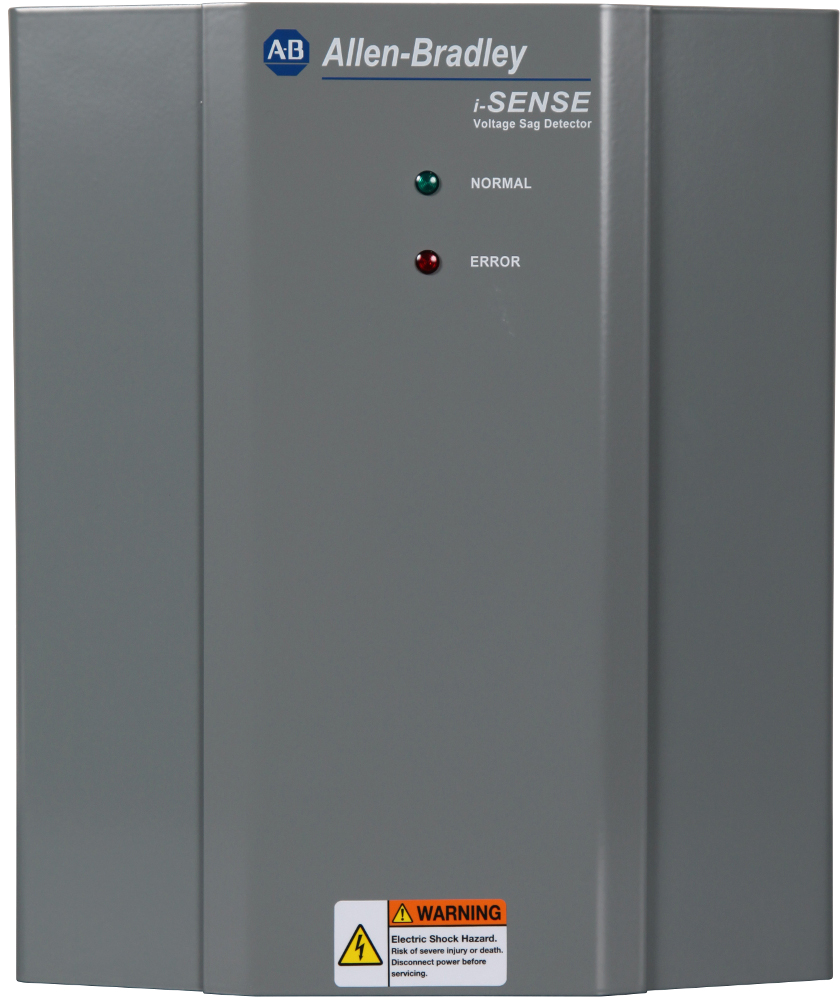

What is I-Sense?
I-Sense monitors are low cost, easy to use, easy to install and virtually maintenance-free.
Once installed, the I-Sense transmits your power quality event data to our I-Grid servers
via an Ethernet or modem connection. That data is collected, analyzed and sent to subscribers
in the form of event notifications — giving you the ability to view detailed power
quality event data and reports anytime, anywhere, using any computer with an Internet connection,
even your cell-phone/pager.
Product Manual
Technical Support
|
Primary I-Sense Features:
- 1-3 phase or dual 3-phase measurement
- Wide range of nominal voltages supported (100-480V)
100V,
105V,
110V,
115V,
120V,
125V,
127V,
133V,
139V,
190V,
200V,
208V,
210V,
216V,
220V,
230V,
240V,
254V,
277V,
346V,
380V,
400V,
415V,
440V,
460V,
480V
Contact I-Grid Support for other nominal voltages.
- 50/60 Hz Auto-sensing
- Event Detection by RMS voltage deviation and adaptive wave shape deviation algorithm
- Periodic logging of 10 minute min/max/avg RMS voltage samples
- Ethernet/Modem Communications
- Storage for over 300 events (nonvolatile memory event storage)
- Web-based Management Console for easy setup (Show Me)
- Long life internal battery allows outage notification
- Event timestamps are synchronized to UTC (NIST Reference)
- Optional power adapter (sold separately) for convenient desktop configuration.
|
Contact I-Grid Sales at (608) 662-7310 for pricing or order online.
|
